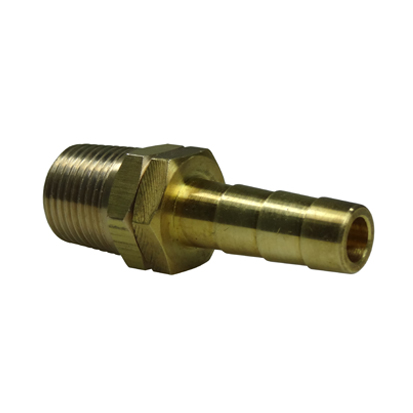

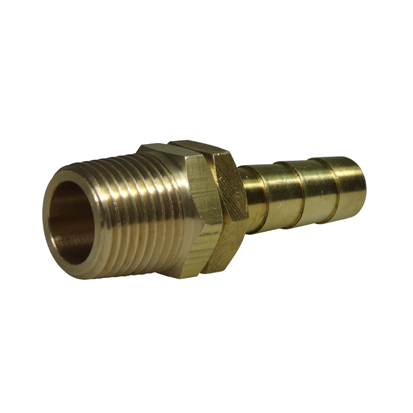

SWIFM13, brass swivelling hose tail
Description
The swivelling hose tail can be used for a swivelling connection between a flexible hose and a spray gun for more comfort in use and longer life of the hoses. Hose tails available in 10mm, 13mm, 16mm and 19mm. The brass versions are equipped with EPDM (FDA) seals and the stainless-steel ones with FKM (FDA) (FDA) seals. The swivelling hose tails are for the low-pressure environment and can take up to 40 bar. For the most common dimensions of these swivelling hose tails, versions with welded-on inside-hose-protection-spring are available. This spring ensures that the hose does not kink at the side of the gun and also improves the life of the hose.
Additional information
| Material body |
Brass (CuZn39Pb3) |
|---|---|
| Material seals |
EPDM (FDA) |
| Connection |
1/2" BSPT male x 13mm hose tail |
| Maximum pressure (bar) |
10 |
| Maximum temperature (°C) |
95 |
| Weight (kg) |
0 ,100 |
| HS-code |
74032100 |
