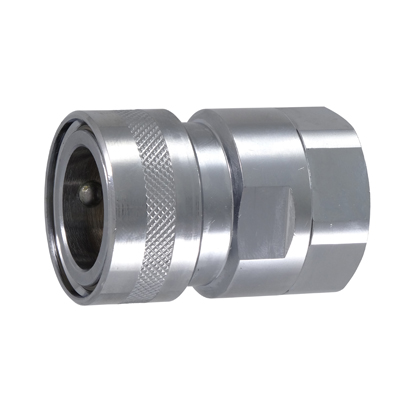

AK63530A3, NiTO 3/4″ water coupler
Description
The NiTO water couplings and adapters simplify the connection of spray guns to hoses, lances and any other components. These water couplings are available in chrome plated brass and in stainless steel and are divided into a 1/2″, 3/4″ and 1″ series.
Additional information
| Version |
3/4" series |
|---|---|
| Connection |
3/4" BSP female |
| Material body |
Chrome plated brass (CuZn39Pb3) |
| Material of the spring & locking ring |
Stainless steel (AISI 301) |
| Material of the balls |
Stainless steel (AISI 420) |
| Material of the seals |
NBR / EPDM |
| Maximum pressure (bar) |
25 |
| Temperature range (°C) |
-30 / +100 |
| Weight (kg) |
0 ,080 |
| HS-code |
74032100 |
